10/5/18 This tutorial was also given as a talk at Maptime Seattle. The google slides for that presentation is here. That presentation made use of PyQGIS but I haven’t updated this tutorial yet to reflect that.

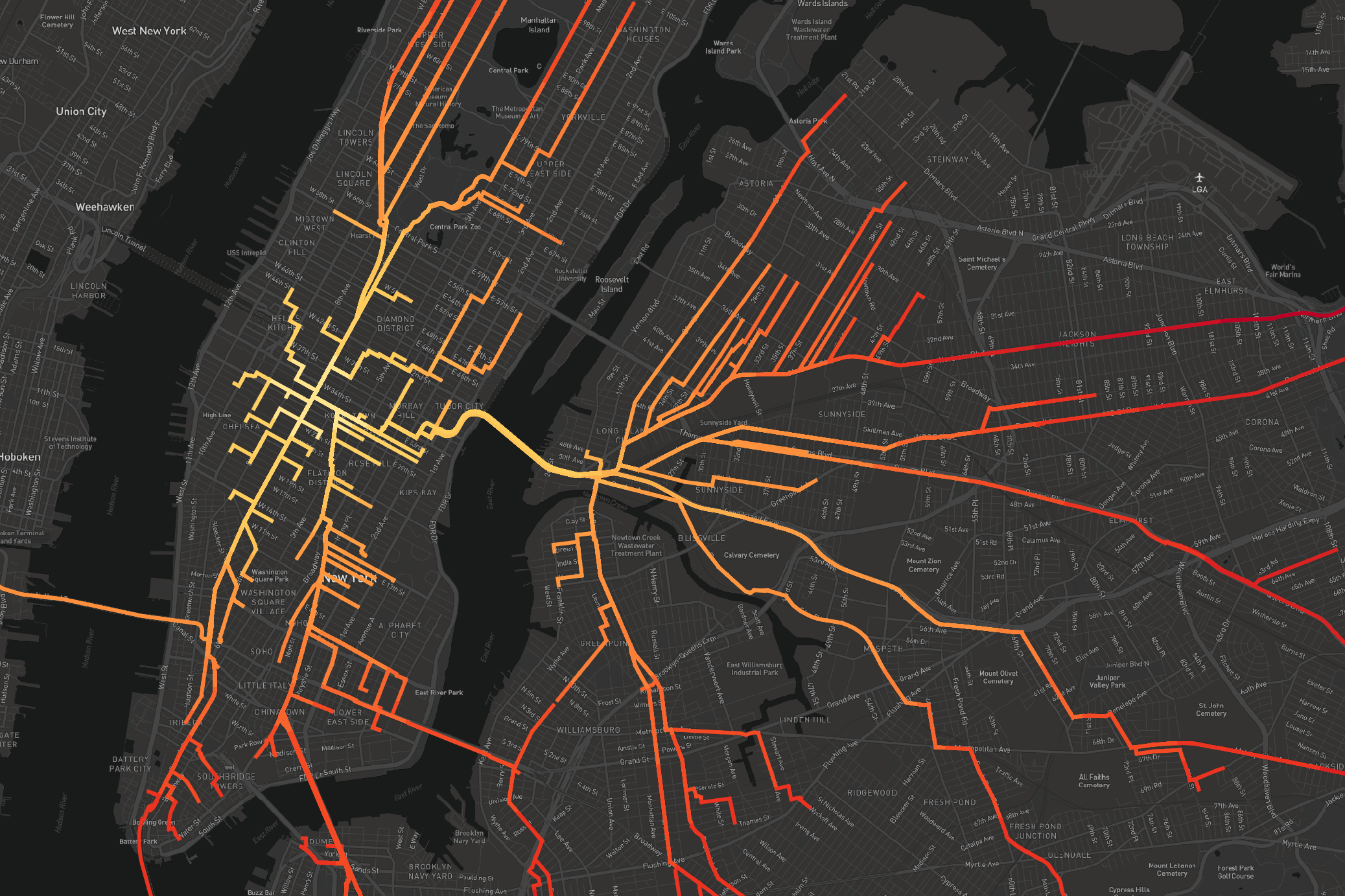

The map above shows travel distances from Penn Station to 194 NYC pizza places. Made using PostGIS, pgRouting, QGIS, python, and with OpenStreetMap data.
A while ago I tried to find a tutorial for pgRouting on Mac OSX. I couldn’t really find anything in one resource so after a weekend of fumbling through many tutorials I found managed to put together Pizza Map 1.0. I decided to put together this tutorial for anyone else interested in a routing crash course.
This tutorial will assume comfort with terminal and some SQL, though you should still be able to make it through by copying and modifying the examples I provide. To aggregate many routes together the routes, the tutorial goes into using Python. If you have any questions, feel free to reach out.
There are a few different ways to install all the tools for this tutorial. I chose the following, mainly because they worked for me. Initially we’ll install PostgreSQL, PostGIS, and pgRouting.
After briefly looking through some quick github issues, I found it would be easier to abandon Postgres.app and instead install all the parts using Homebrew. If you don’t already have it, install Homebrew.
Then in terminal run
brew update brew install postgresql brew install postgis brew install pgrouting brew install interline-io/planetutils/osmctools brew install osm2pgrouting
This should install also PostgreSQL and PostGIS as dependencies. Osmctools contains osmconvert, which we will use later to convert from .pbf to .osm.
Install PostgreSQL (I used v10.5) from EnterpriseDB. Uncheck stackbuilder, we will not use pgAdmin (a graphical interface for PostgreSQL) either though you may want to use it later.
You will need to set a password for the database superuser, please remember this password.
Read about all the reasons you should use the OSGeo package, and all the things it comes with here.

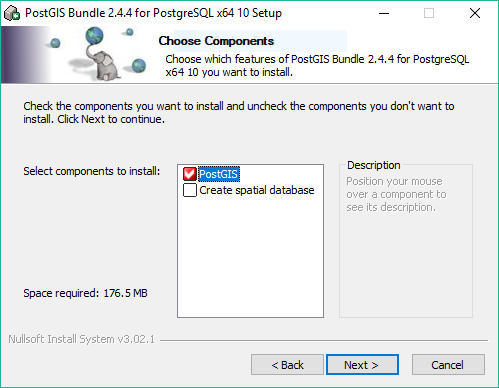

After that install version 10 from OSGeo’s PostGIS Bundle. Select the bundle marked setup. This bundle contains PostGIS, pgRouting, and osm2pgrouting.
Click no on the popups that occur during the installation refering to raster support.
Download osmconvert, the binary for Windows 32 bit version. Create a folder and place this file in your project folder.
Using the handy OSM extract data on HOT’s Export Tool. Any osm export service should do, they have a friendly interface for exporting data.
If you would like the same export I used, checkout this link.
If you make your own:
We’ll use QGIS to put our maps together. Download the latest version (3.2) via the standalone installer. QGIS will come with Python as well.
Please make sure you have done the following before Maptime.
To start PostgreSQL run the following command, replacing path/to/workspace with the folder you’d like PostgreSQL to store your data. If you’d like you can set this as an environment variable PGDATA. Read more on the official docs.
pg_ctl -D /path/to/workspace start
Then enter psql, PostgreSQL’s terminal interface, and create a new database with PostGIS enabled.
Open the SQL Shell that was bundled with EnterpriseDB’s PostgreSQL installation. Press enter to use the default server, database, and port. Enter the password you came up with during installation.
Server [localhost]: Database [postgres]: Port : Password for user postgres: ... postgres=#
In psql (terminal should have
postgres=# on the left) we’ll create a routing database, connect to it, and add the PostGIS & pgRouting extensions. Capitalization does not matter, I simply used it to emphasize psql keywords.
CREATE DATABASE routing; \connect routing CREATE EXTENSION postgis; CREATE EXTENSION pgrouting; CREATE EXTENSION hstore;
Check if the extensions where correctly installed by looking at the database’s tables.
List of relations Schema | Name | Type | Owner --------+-------------------+-------+------- public | geography_columns | view | ariel public | geometry_columns | view | ariel public | raster_columns | view | ariel public | raster_overviews | view | ariel public | spatial_ref_sys | table | ariel (5 rows)
If you make your own:
Unfortunately, osm2pgrouting only accepts .osm files (xml) and .pbf files are an optimized version of that.
Run the following command to convert from .pbf to .osm (this will also remove some metadata tags from the file, which osm2pgrouting doesn’t need):
osmconvert new-york-metro_export.pbf --drop-author --drop-version --out-osm -o=new-york-metro_export.osm
The data we’re using has been extracted from OSM. This meant that we can use the handy osm2pgrouting tool. You can download the tool from github and follow their installation instructions, install via homebrew (Mac), or install it via OSGeo’s PostGIS bundle (Windows).
osm2pgrouting doesn’t import all your osm data into PostgreSQL. It relies on what you tell it to import via the –conf parameter. Here we’ll tell it to import anything that has the tag ‘highway=…’ and ‘cuisine=pizza’. This is based on the mapconfig_for_cars.xml.
Copy the following configuration file and save it as mapconfig.xml in your project folder.
<?xml version="1.0" encoding="UTF-8"?> <configuration> <tag_name name="highway" id="1"> <tag_value name="motorway" id="101" priority="1.0" maxspeed="130" /> <tag_value name="motorway_link" id="102" priority="1.0" maxspeed="130" /> <tag_value name="motorway_junction" id="103" priority="1.0" maxspeed="130" /> <tag_value name="trunk" id="104" priority="1.05" maxspeed="110" /> <tag_value name="trunk_link" id="105" priority="1.05" maxspeed="110" /> <tag_value name="primary" id="106" priority="1.15" maxspeed="90" /> <tag_value name="primary_link" id="107" priority="1.15" maxspeed="90" /> <tag_value name="secondary" id="108" priority="1.5" maxspeed="90" /> <tag_value name="secondary_link" id="109" priority="1.5" maxspeed="90"/> <tag_value name="tertiary" id="110" priority="1.75" maxspeed="90" /> <tag_value name="tertiary_link" id="111" priority="1.75" maxspeed="90" /> <tag_value name="residential" id="112" priority="2.5" maxspeed="50" /> <tag_value name="living_street" id="113" priority="3" maxspeed="20" /> <tag_value name="service" id="114" priority="2.5" maxspeed="50" /> <tag_value name="unclassified" id="117" priority="3" maxspeed="90"/> <tag_value name="road" id="100" priority="5" maxspeed="50" /> </tag_name> <tag_name name="cuisine" id="2"> <tag_value name="pizza" id="201" /> </tag_name> </configuration>
If you installed osm2pgrouting successfully, you should be able to run the following command (in terminal, outside of psql), which will begin importing your OSM data into PostgreSQL.
osm2pgrouting --f new-york-metro_export.osm --conf mapconfig.xml --dbname routing --username USERNAME --clean --addnodes
\dcommand from earlier.
This process will take a while, osm2pgrouting loads all the data into memory and then inserts it into the database.
Enter into psql again, and run a SELECT query on the newly created ways table.
psql routing SELECT count(*) FROM ways;
For my data, the result was:
count -------- 372974 (1 row)
You can see all the new tables with
We’re going to build a query to find a route between two points, using their source or target IDs that were created by osm2pgrouting. These will appear in the “source” and “target” columns of the ways table. At this point, querying data in psql can become a little cumbersome. If you’re going to continue working with PostgreSQL or databases in general, I recommend downloading DBeaver.
Note: my numbers may not necessarily match yours depending on your OSM extract and the order they were imported into the database.
The source will be the road we route to all the pizza nodes from. To find the ‘source’ go to https://www.openstreetmap.org/ and find the way you’d like to route from. In my case I used the road in front of Penn Station, https://www.openstreetmap.org/way/195743190.
SELECT source FROM ways WHERE osm_id = 195743190;
Then we need to find a destination, or ‘target’. You can open up OpenStreetMap again or select a “random” pizza node using the follow query.
SELECT * FROM osm_nodes WHERE tag_value = 'pizza' LIMIT 1;
2063693322 cuisine pizza CJ's POINT (-74.0444971 40.8517183)
Now, our routing network relies on routing from ways to ways, not points to ways. We’re going to need to find the nearest way to that pizza node.
SELECT source FROM ways ORDER BY ways.the_geom <-> (SELECT the_geom FROM osm_nodes WHERE osm_id = 2063693322 limit 10) LIMIT 1;
Now we can finally run a pgRouting query. We’ll use pgr_dijkstra.
SELECT * FROM pgr_dijkstra(' SELECT gid as id, source, target, length as cost FROM ways', 181766, 2102, false);
You should see a list of nodes, their edges, and the cost (distance) of the ways.
1 1 181766 308044 0.0007495974657185707 0 2 2 29620 306514 0.0012048054830953953 0.0007495974657185705 3 3 44095 51609 0.0010462785288907173 0.001954402948813966 ...
If we want to attach geometry to this route, join that route with the ways table.
SELECT * FROM (SELECT * FROM pgr_dijkstra(' SELECT gid as id, source, target, length as cost FROM ways', 181766, 2102, false)) as route, ways WHERE route.edge = ways.gid;
... LINESTRING (-73.9911207 40.7503112, -73.9911843 40.7502241, -73.9915006 40.7497913, -73.991563 40.749706) ...
Open up QGIS. Go to Layer -> Add Layer -> Add PostGIS layer.
Click on “new” and enter routing as the Name.
Enter routing as the database unless you entered something else earlier. Hit “OK” and then “connect”.
Open the “public” tab under schema and highlight “ways” and press add.
This should add the ways (road network).
From the menu, open Database -> DB Manager -> DB Manager.
In the database manager, open PostGIS -> Routing -> public.
From the menu, click on Database -> SQL Window (F2).
Past the following query, with your source(181766)/target(2102) numbers.
SELECT the_geom, agg_cost FROM (SELECT * FROM pgr_dijkstra(' SELECT gid as id, source, target, length as cost FROM ways', 181766, 2102, false)) as route, ways WHERE route.edge = ways.gid;
Now check “load as new layer.” Make sure Geometry Column is checked and “the_geom” is selected.
A new “Query Layer” will be added to your map. The default style may blend in with the ways, so restyle it to check for the route.
Note: QGIS fails to load query layers if you do not SELECT the geometry column.
In this next section, I’m going to use a python script to loop through all the pizza nodes and route to them. While this could probably also be done as a PostgreSQL function, I find it more practical to branch into python. Especially if you’d like to continue processing your data there.
These next steps are also available as a Jupyter Notebook on my github.
Pyscopg is a handy python library that provides an API for accessing Postgresql.
Import the libraries we’ll use
import psycopg2 import csv
Change user=’’ to your database username
conn = psycopg2.connect("dbname=routing user=ariel") cur = conn.cursor()
Find the “source” way.
This will be the road we route to all the pizza nodes from. To find the ‘source’ go to https://www.openstreetmap.org/ and find the way you’d like to route from. In my case I used the road in front of Penn Station, https://www.openstreetmap.org/way/195743190.
way_osm_id = 195743190 cur.execute("SELECT source FROM ways WHERE osm_id = %s", (way_osm_id,)) source = cur.fetchone() print("My source: " + str(source))
Get all the pizza nodes.
cur.execute("SELECT * FROM osm_nodes WHERE tag_value = 'pizza'") osm_ids =  for record in cur: osm_ids.append(record) print("We're going to route to: " + str(len(osm_ids)) + " pizza nodes.")
Find the closest streets to each pizza node.
osm_ids_streets =  for osm_id in osm_ids: cur.execute("SELECT source\ FROM ways\ ORDER BY ways.the_geom <-> (SELECT the_geom FROM osm_nodes WHERE osm_id = %s limit 10) limit 1;", (osm_id,)) osm_ids_streets.append(cur.fetchone()) print("We've got: " + str(len(osm_ids_streets)) + " nearest streets. Should be the same number as pizza nodes.")
This function will output each route to a csv file, which we can then load into QGIS.
def writeRoute(route): print("writing route of length: " + str(len(route))) with open('routes.csv', 'a') as f: writer = csv.writer(f, lineterminator='\n') for r in route: writer.writerow(r)

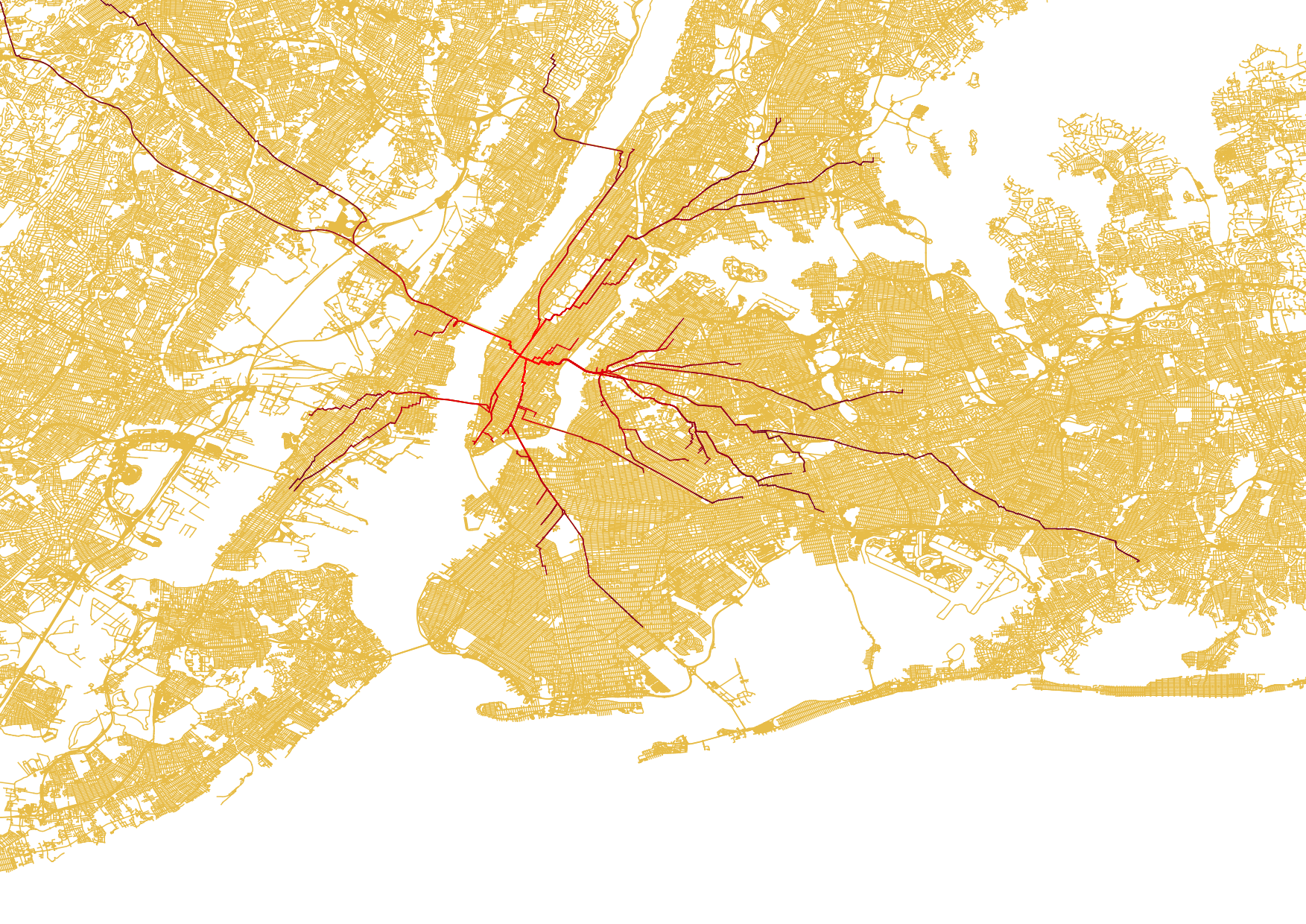

Finally, loop through all the nearest streets to each pizza node and route to them from a common source.
Tip: add a break to the loop and test just one route first!
for osm_id in osm_ids_streets: cur.execute("select ST_AsText(the_geom), agg_cost from (SELECT * FROM pgr_dijkstra('\ SELECT gid as id, source, target, length as cost\ FROM ways',\ %s, %s, false)) as x, ways where x.edge = ways.gid;", (source, osm_id,)); writeRoute(cur.fetchall())
If you’re not using the Jupyter notebook, put all the above code blocks into a single script.py and run.
You should now have routes.csv, which has line segments and their agg_cost (aggregated distance from the source point).
Feel free to email me or message me on twitter.
